SERPENTINE - FINNED PIPES,  STEAM / AIR HEATERS

3/8 ” – 3 ”  PIPE FINNING

INCREASING HEAT TRANSFER AREA BY FINNING THE TUBULAR PIPES, TO ACHIEVE MORE EFFICIENT PROCESS EITHER WITH ELECTRIC OR GAS POWERED SYSTEMS. USEFUL IN DRYING PLANTS, BOILERS AND HEAT EXCHANGERS.

AIR/STEAM HEAT EXCHANGERS MANUFACTURED AND TESTED WITH 8 ATM PRESSURE

THE HEAT TRANSFER AREA OF A FINNED PIPE DEPENDS ON BELOW CRITERIA

L1: TOTAL LENGTH OF THE PIPE

S: DISTANCE FOR WELDING OR SCREW FIXING

D: DIAMETER OF THE PIPE

t: WALL THICKNESS OF THE PIPE

h: DISTANCE BETWEEN RINGS

Dn : DIAMETER AFTER FINNING

USING PRESSURIZED STEAM OR HOT WATER, FINNED PIPES ARE USEFUL  FOR :

HEATING OF THE PLANTS AND FACTORIES

DRYING OF GRAINS AND CROPS

CONDITIONING ROOM TEMPERATURE FOR SPECIAL PURPOSES (FERMENTATION ETC.)

USING OF THERMAL SOURCES

HEATING COVERED GARDENS

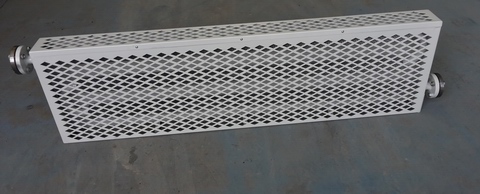

DECORATIVE UNITS

DECORATIVE PANELS ARE ADDED TO HEAT SHOPPING CENTERS, GYMS, EXHIBITOIN CENTERS OR ANY OTHER VOLUMES.  HEAT TRANSFER AREA OF THESE UNITS ARE 4-11 TIMES MORE THAN THE TRADITIONAL- IRON CASTING HEATERS.

VARIOUS PATTERNS
